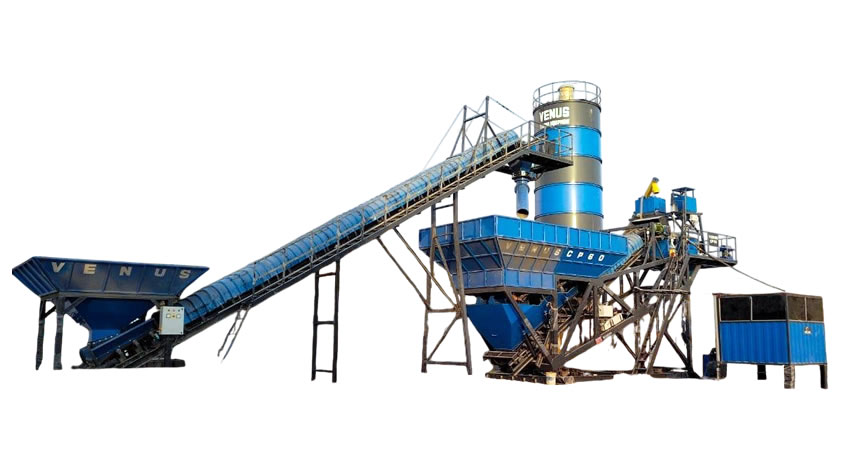

Venus CP 60 Concrete Batching Plant | High Capacity & Reliable Performance
The Venus CP 60 is designed for medium to large construction projects. It produces up to 60 m³/h of high-quality concrete, ensuring fast and consistent mixing.
Choose from mixer options like Turbo Pan, Twin Shaft, or Planetary Mixers to match your specific needs. The fully automatic PLC control panel provides precise operation, real-time monitoring, and easy management of all batching processes.
Its modular, compact design allows for quick installation and efficient use of space. Built with durable, high-quality materials, the CP 60 offers long-lasting performance and low maintenance.
Enhance your plant with optional accessories such as advanced SCADA systems, cement silos, and material conveyors. Whether you’re in ready-mix, construction, or precast manufacturing, Venus delivers customized solutions backed by expert R&D and dedicated after-sales support.
Contact us today to optimize your concrete production with the Venus CP 60.
| Output Theoretical | 60 Cu. Mtr./Hr |
| Nos. of Bins | 4 Bin (2×2 Cross Bin) |
| Mixer | TWIN SHAFT / PAN |
| Material storage system | 2 x 2 cross bin feeder |
| Material storage capacity | 30 M3 |
| Material weighing system | Digital load cell based separate weighing of aggregate, cement, water and additive |
| Material feeding system | Through inclined belt conveyor |
| Cement/Filler Weighing System | YES |
| Water Weighing System | YES |
| Admixture Weighing System | YES |
| SUGGESTED D.G SET | 125 KVA |
| Maximum Size of Aggregate* | 80 mm |
| Water Sprinkling & Gravity Discharge System | YES |
| Air Compressor | 2 HP |
| Screw Conveyor for Cement | YES |
| Control System | SCADA operating system based control panel with internal cabling |
| Concrete Discharge Height | 4.1 Meter From The Ground Level |
| Total Connected Power | 98 HP |
