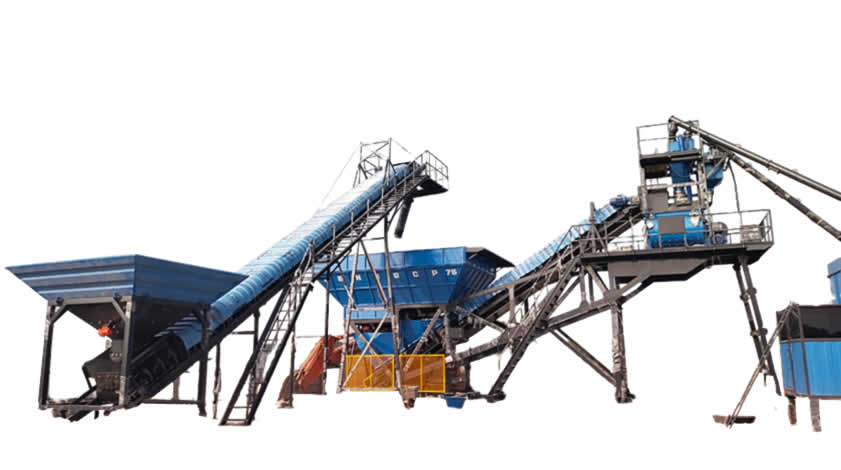

Venus CP 75 Concrete Batching Plant | Reliable High-Capacity Concrete Production
Efficient & Scalable Concrete Solution for Large Projects
The Venus CP 75 offers a robust batching system with a capacity of up to 75 m³/h, ideal for large-scale commercial, infrastructure, and precast manufacturing. Featuring multiple mixer options—Turbo Pan, Twin Shaft, and Planetary—this plant provides flexibility for various concrete mixes.
Key Features:
Benefits:
Contact us today for more details or a custom quote!
| Output Theoretical | 75 Cu. Mtr./Hr |
| Nos. of Bins | 4 Bin (2×2 Cross Bin) |
| Mixer | TWIN SHAFT / PAN |
| Material storage system | 2 x 2 cross bin feeder |
| Material storage capacity | 30 M3 |
| Material weighing system | Digital load cell based separate weighing of aggregate, cement, water and additive |
| Material feeding system | Through inclined belt conveyor |
| Cement/Filler Weighing System | YES |
| Water Weighing System | YES |
| Admixture Weighing System | YES |
| SUGGESTED D.G SET | 160 KVA |
| Maximum Size of Aggregate* | 60 mm |
| Water Sprinkling & Gravity Discharge System | YES |
| Air Compressor | 2 HP |
| Screw Conveyor for Cement | YES |
| Control System | PLC based control panel with internal cabling |
| Concrete Discharge Height | 4.1 Meter From The Ground Level |
| Total Connected Power | 108 HP |
