Discover the powerful Concrete Pump VCP 1470 with 112 HP, 200 mm cylinder, and high-output capabilities for efficient concrete placement over long distances.

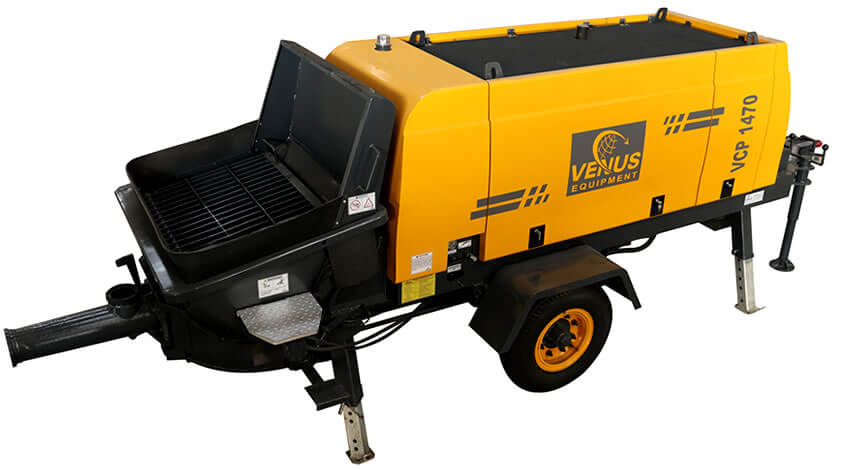

The Concrete Pump VCP 1470 delivers a maximum theoretical output of up to 65 m³/h with a 200 mm diameter cylinder and a 1400 mm stroke. Equipped with an 112 HP open circuit hydraulic system, it handles concrete pressures up to 106 BAR and can achieve horizontal distances of 400 meters and vertical distances of 100 meters. Built for durability and high performance, it ensures efficient, reliable concrete placement on demanding construction projects.The VCP 1470 is designed for a wide range of demanding construction projects, including high-rise buildings, bridges, commercial RMC, and large-scale infrastructure. It delivers reliable, smooth, and accurate concrete placement, capable of handling challenging conditions such as underground applications, tunneling, and pumping various concrete mix designs with ease and precision.
| MODEL | VCP 1470 |
| Max Theoretical Output | 65/45* M3/H |
| Max. Theoretical Concrete Pressure | 71/106* BAR |
| Stroke/ Minute | 25/17 Min |
| Concrete Cylinder Diameter | 200 MM |
| Concrete Cylinder Stroke | 1400 MM |
| Hopper Capacity | 600 L |
| Filling Height | 1350 MM |
| Hydraulic System Type | Open Circuit |
| Power | 82(112 HP) KW/HP |
| KOEL Model | HA494 |
| Horizontal Delivery Distance | 400 |
| Vertical Delivery Distance | 100 |
