Experience high-capacity concrete pumping with VCP 1470 HR, featuring 180 HP power, 200 mm cylinder, and long-distance capabilities for demanding construction projects.

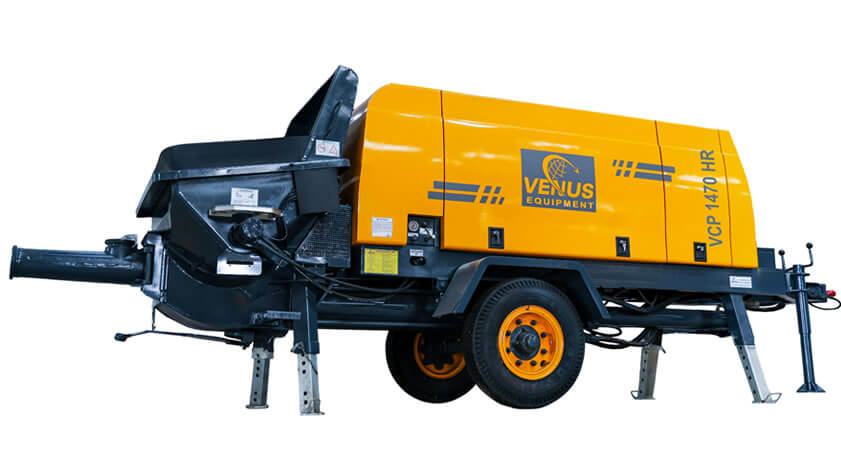

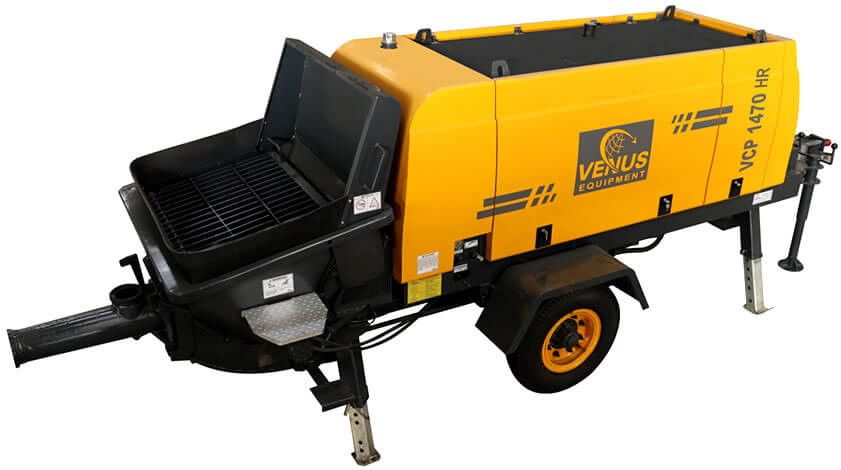

The Concrete Pump VCP 1470 HR delivers a maximum theoretical output of up to 65 m³/h with a 200 mm diameter cylinder and a 1400 mm stroke. Powered by a robust 180 HP open circuit hydraulic system, it handles concrete pressures up to 106 BAR and can reach horizontal distances of 400 meters and vertical distances of 100 meters. Designed for high-performance and durability, it ensures efficient concrete placement on large-scale construction sites.VCP 1470 HR is perfect for demanding projects such as high-rise buildings, bridges, commercial RMC, large-scale infrastructure, mega projects, and Venus concrete pumps. It ensures smooth, consistent, and precise concrete delivery even in challenging conditions like tunneling, below-ground applications, and pumping various concrete mix designs.
| MODEL | VCP 1470 HR |
| Max Theoretical Output | 65/45* M3/H |
| Max. Theoretical Concrete Pressure | 71/106* BAR |
| Stroke/ Minute | 25/17 Min |
| Concrete Cylinder Diameter | 200 MM |
| Concrete Cylinder Stroke | 1400 MM |
| Hopper Capacity | 600 L |
| Filling Height | 1350 MM |
| Hydraulic System Type | Open Circuit |
| Power | 132(180 HP) KW/HP |
| KOEL Model | HA494 |
| Horizontal Delivery Distance | 400 |
| Vertical Delivery Distance | 100 |
