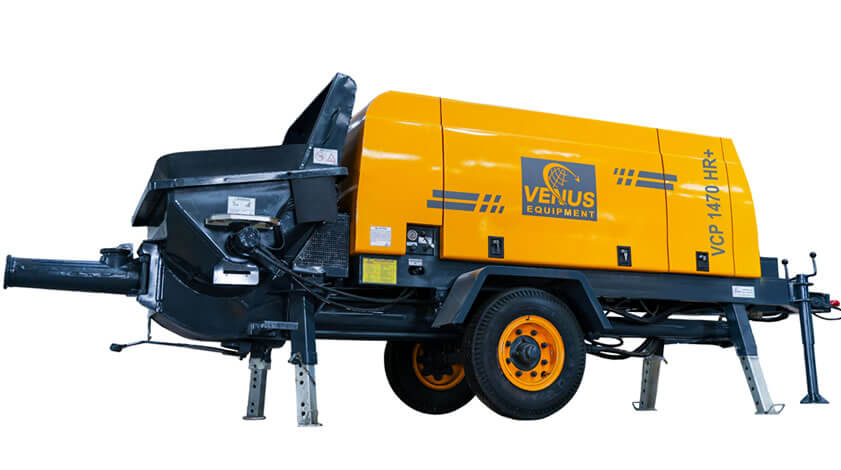

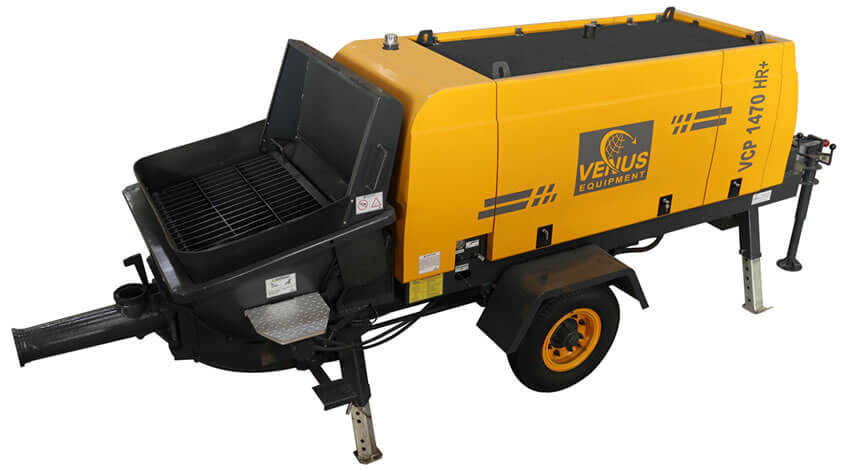

High-performance VCP 1470 HR+ concrete pump with long-distance reach, advanced technology, and reliable operation for construction projects.
The VCP 1470 HR+ concrete pump features a 200 mm diameter piston, delivering a maximum output of up to 58 m³/h with pressures reaching 142 BAR. Powered by a 180 HP open circuit hydraulic system, it offers variable concrete output, long-distance placement (400 meters horizontal, 100 meters vertical), and innovative design elements such as a large capacity hopper, advanced S-valve technology, and maintenance-friendly features. Its robust construction reduces operating costs and enhances durability for demanding construction applications.Ideal for demanding projects like high-rise buildings, bridges, Commercial RMC and large-scale infrastructure, Mega projects and Venus concrete pumps ensure smooth, consistent, and precise concrete delivery, even under challenging conditions like tunnels applications, below ground level applications, concrete pumping of various concrete mix designs
| MODEL | VCP 1470 HR+ |
| Max Theoretical Output | 58/36* M3/H |
| Max. Theoretical Concrete Pressure | 88/142* BAR |
| Stroke/ Minute | 22/14 Min |
| Concrete Cylinder Diameter | 200 MM |
| Concrete Cylinder Stroke | 1400 MM |
| Hopper Capacity | 600 L |
| Filling Height | 1350 MM |
| Hydraulic System Type | Open Circuit |
| Power | 132(180 HP) KW/HP |
| KOEL Model | HA494 |
| Horizontal Delivery Distance | 400 |
| Vertical Delivery Distance | 100 |
