Boost your concrete production with the Venus VIST 45 Stationary Batching Plant. Features twin shaft or pan mixers, PLC control, and 45 Cu.m capacity for large-scale construction projects.

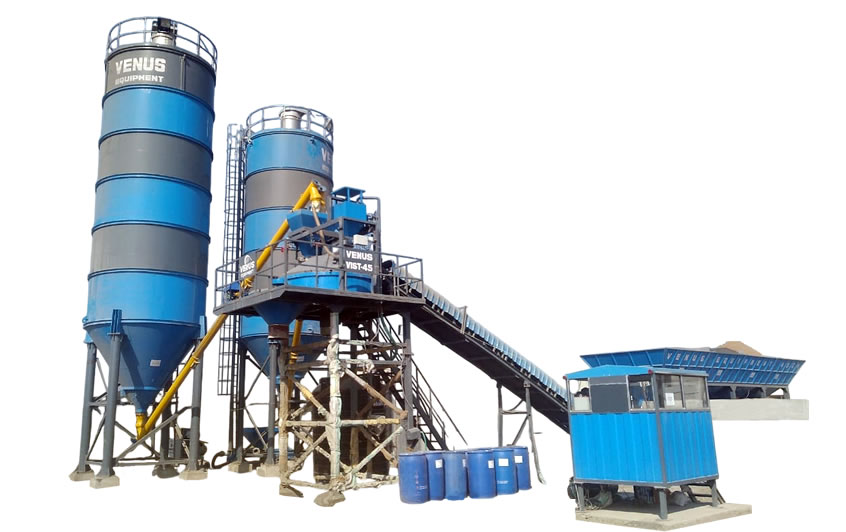

The Venus VIST 45 Stationary Concrete Batch Plant is designed to meet the demanding needs of large-scale and high-quality concrete production. Equipped with a robust twin shaft or pan mixer, it ensures consistent mixing and superior concrete quality. Featuring an advanced PLC control panel and digital load cell weighing system, this plant simplifies operation, reduces downtime, and minimizes maintenance costs. Its high capacity of 45 cubic meters per hour, along with a 4.1-meter discharge height and inclined belt conveyor batch feeding, makes it ideal for infrastructural, precast, and other massive construction projects. Built for efficiency, reliability, and flexibility, the VIST 45 delivers maximum productivity for your construction needs.
| MODEL | VIST 45 |
| Mixer Type | TWIN SHAFT / PAN |
| Output Capacity | 45M3/Hr |
| Mixer Unit | Turbo pan type mixer/ twin shaft mixer |
| Main mixer reduction gear box | Imported planetary reduction gear box |
| Material storage capacity | 40 M3 |
| Batch feeding system | Through inclined belt conveyor |
| Control panel | Fully automatic PLC based control panel |
| Total connected power (HP) | 79 HP |
| Suggested DG Set | 125 KVA |
| Concrete Output | 45 Cu.m |
| Main gear drive | Planetary gear box |
| Weighing system | Digital load cell based weighing system |
| Batch feeding system | Through inclined belt conveyor |
| Control panel | PLC based control panel with internal cabling |
| Concrete discharge height | 4.1 mtrs. |
