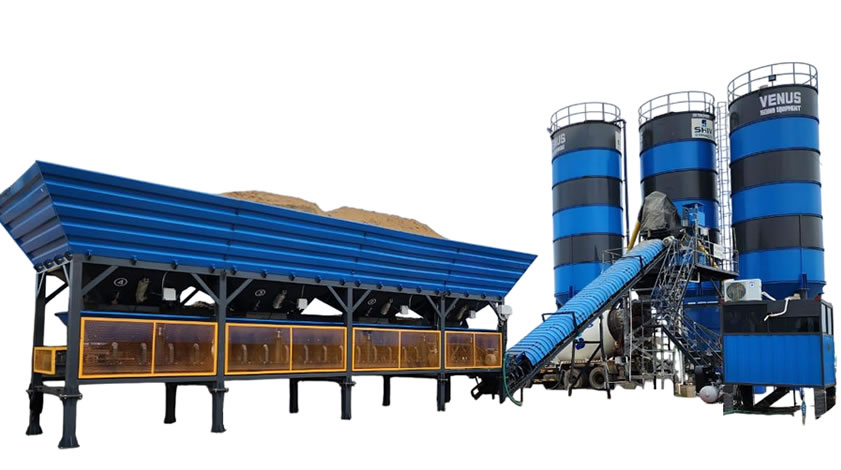

Boost your concrete production with the Venus VIST 60 Stationary Batching Plant. Featuring a twin shaft mixer, PLC control, and 60 Cu.m capacity, it’s perfect for large infrastructure and precast projects.
Achieve high-capacity concrete production with the Venus VIST 60 Stationary Batching Plant. Designed for large-scale infrastructure, precast, and massive construction projects, this plant features a powerful twin shaft mixer that ensures consistent, high-quality concrete output of up to 60 cubic meters per hour. Equipped with advanced PLC control, a digital load cell weighing system, and an inclined belt conveyor for efficient batch feeding, the VIST 60 simplifies operations and maximizes productivity. Built for reliability and continuous operation, it offers low maintenance costs and exceptional flexibility, making it an ideal solution for demanding construction environments.
| MODEL | VIST 60 |
| Mixer Type | TWIN SHAFT / PAN |
| Output Capacity | 60M3/Hr |
| Mixer Unit | Turbo pan type mixer/ twin shaft mixer |
| Main mixer reduction gear box | Imported planetary reduction gear box |
| Material storage capacity | 40 / 60 M3 |
| Batch feeding system | Through inclined belt conveyor |
| Control panel | Fully automatic PLC based control panel |
| Total connected power (HP) | 105 HP |
| Suggested DG Set | 160 KVA |
| Concrete Output | 60 Cu.m |
| Main gear drive | Planetary gear box |
| Weighing system | Digital load cell based weighing system |
| Batch feeding system | Through inclined belt conveyor |
| Control panel | PLC based control panel with internal cabling |
| Concrete discharge height | 4.1 mtrs. |
